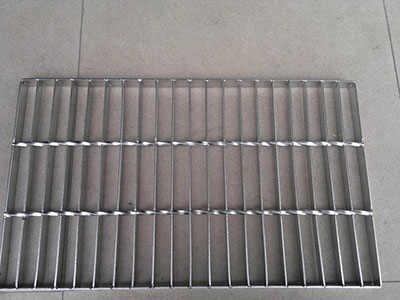

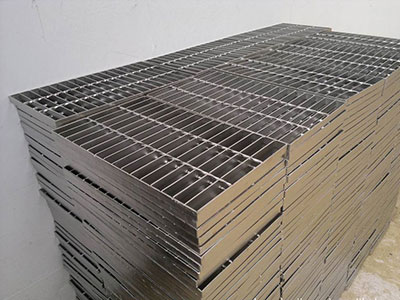

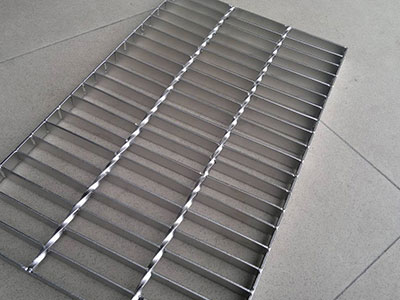

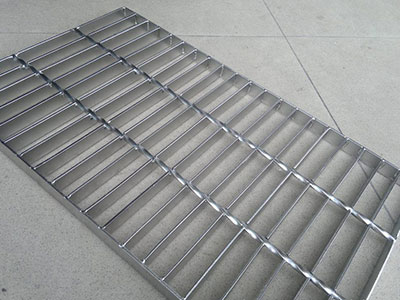

Stainless steel bar grating is a rigid grid structure consisting of load-bearing bars and cross bars (welded, press-locked or swage-locked), made from austenitic stainless steel (Grade 304/316). It offers excellent corrosion resistance, high strength-to-weight ratio, and an open area for ventilation and drainage. Suitable for walkways, platforms, stair treads, trench covers and catwalks in food processing, chemical, marine and architectural applications.
| Material: | Stainless Steel 304/316 |

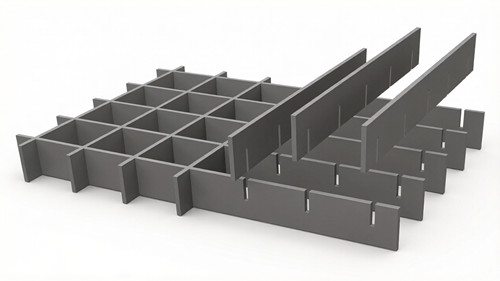

| Type: | Welded Type (W) or Press-Locked / Swage-Locked Type |
| Structure: | Bearing Bar (Flat Bar) / Cross Bar / Twisted Square Bar |

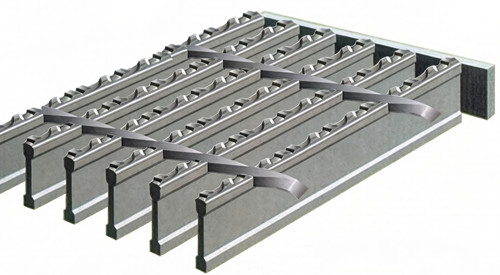

| Surface: | Serrated Surface (Serrated Type) / Plain Surface |
| Bearing Bar Size: | Light Duty / Walkway- 20×3、25×3、25×5 Standard Duty- 30×3、30×5、32×3、32×5、40×3、40×5 Heavy Duty Platform- 50×5、50×6、60×5、65×5 |
| Bearing Bar Pitch: | 30mm, 40mm, 60mm etc. |
| Cross Bar Size: | 6mm, 8mm, 10mm etc. |
| Cross Bar Pitch: | 50mm, 100mm etc. |
| Grating Width: | 600mm, 800mm, 1000mm, 1200mm etc. |
| Grating Length: | 1000～6000mm |
